Basics of static balance in Centrifugal pumps

Balance is a key concept in the realm of centrifugal pumps. Balance is extremely important to have the pump serve its function optimally. In the pump world, there are mainly two types of balancing that operate which are static balance and dynamic balance. So at the tad we will be talking about what is static balance all mean first.

Static balance in a split case centrifugal pump implies that the weight or forces are distributed symmetrically about the axis of rotation of the pump. This equilibrium is such that if you stop the pump, all components are in positions of rest. Static balance, on the other hand, is as easy to picture as a see-saw with equal weights at both ends.

The importance of dynamic balance in pump operation

So, lets move on to dynamic balance. Dynamic balance in a centrifugal pumpThe purpose of dynamic balancing in a centrifugal pump is to have it run in steady state free from any vibrations. On the case that the pump is enabled, you need to balance the forces acting on it (in order to avoid any eventual vibration or wobbling).

The static and dynamic balance of split case pumps are different

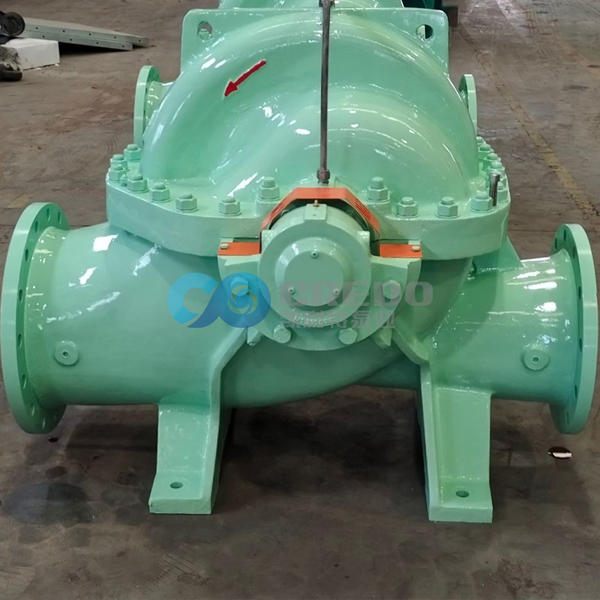

​Horizontal split case centrifugal pump need static and dynamic balance, too so they work as efficiently as possible. Split case pumps, on the other hand, are characterized by a split casing that permits the internal components of the pump to be easily accessed. It is so it is statically balanced and all parts, when the pump is not running are equally distributed. Dynamic stability, on the other hand, counteracts in conjunction with a flying object such as a pump at full tilt moving water from one place to another.

Effects of balance on efficiency and performance in centrifugal pumps

The balance of a centrifugal pump directly affects its efficiency and operating performance. A pump that is properly balanced will run quietly, smoothly, and efficiently. In fact, an unbalanced pump consumes more energy than a balanced one, and cause increased wear & tear and even FAILURE of the pump.

The conclusion is a brief discussion on the practicalities of becoming proficient in both static and dynamic balance in pump maintenance.

In pump maintenance, static and dynamic balance are two aspects that must be mastered for the centrifugal pump to function best. By periodically verifying the balance of these parts, if an imbalance is occurring it can be detected before escalating. Correcting the primary imbalance could help in prolonging the life of your pump, maximizing efficiency and saving you from expensive repairs down the line.

This concludes our brief overview of the differences between both the static and dynamic balance in a axial split case centrifugal pump, which play an essential part in ensuring the operational efficiency and effectiveness at all times. If you learn how to balance these two types of balances and regularly implement some maintenance routines for your pump, then you are well off in order to keep the pump functioning properly and elongate its reliability.
